Banillia Pinout

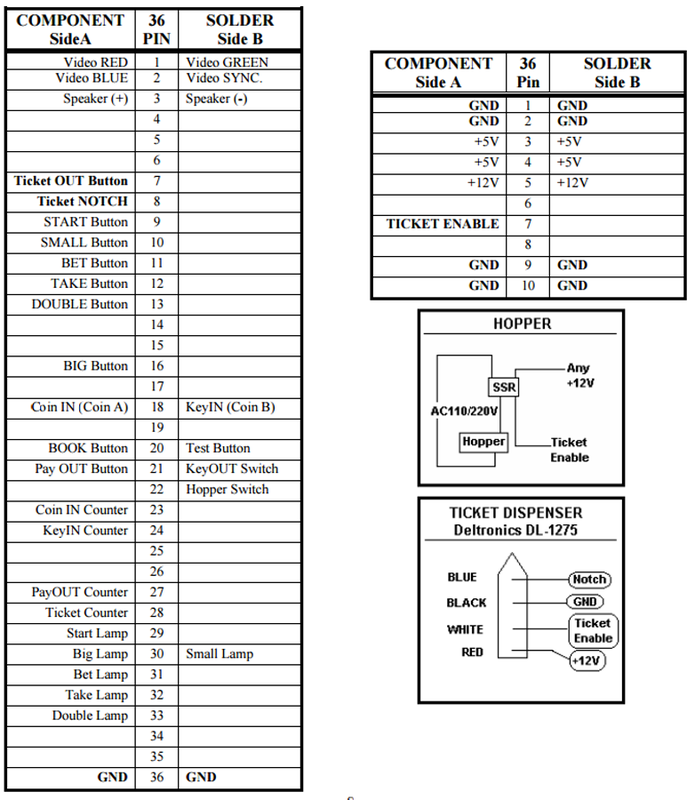

36 Pin Harness

  • Pin 18 is Pulse In

POG 28 Pin Harness

28 Pin Harness

  • Pin 16 is Pulse In

Pot O Gold

  • 28 Pin Harness
  • Pin Out Chart (Link)

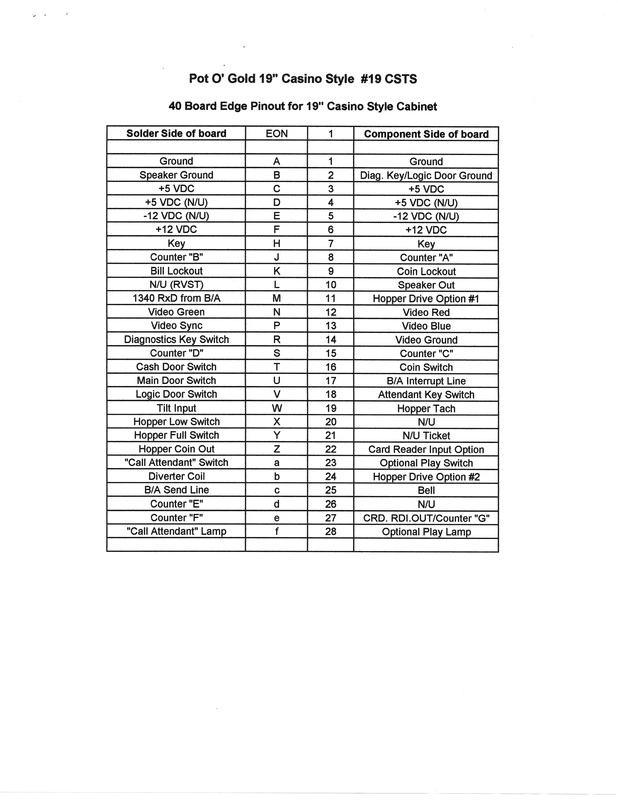

Gold Club Pinout

  • 28 Pin Harness (Link)
  • Part-Side Pin 16 is Pulse In
  • Update 4/29/16 (Link)

POG Printer Bi-Pass

  • Apply 5 volts to three wires.
  • Plug RJ-45 into last port
  • Change printer to Itchia
  • Part (Link)

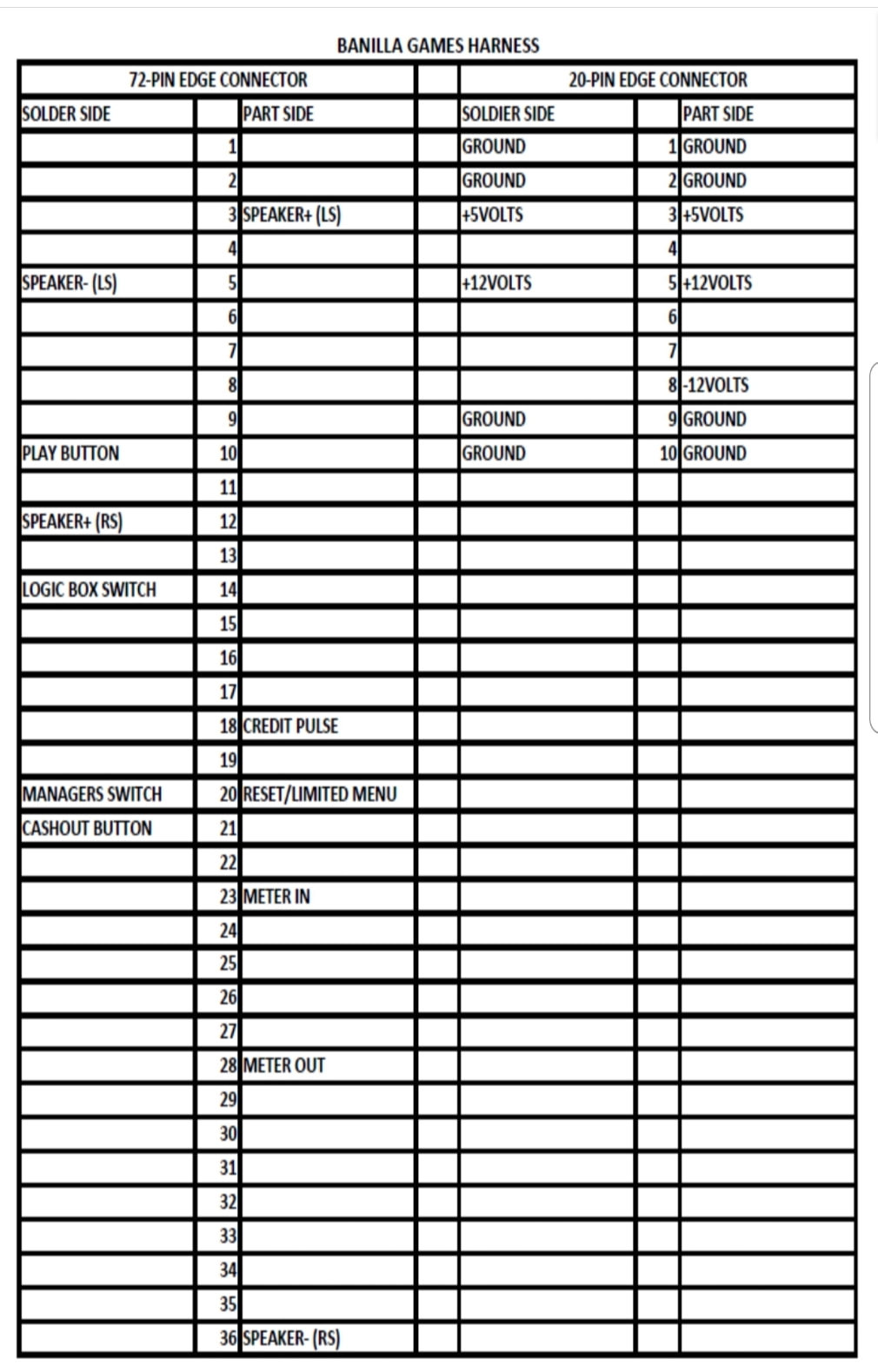

Banillia Pinout

  • 36 Pin Harness
  • Part-Side Pin 18 is Pulse In
  • Solder Side Pin 10 is Play Button
  • Solder Side Pin 21 is Cash Out Button
  • Solder Side Pin 20 is Managers Button

Captain Jack

  • 36 Pin Harness
  • Part-Side Pin 18 is 4-Pulse In
  • Part-Side Pin 20 is Managers Button
  • Solder Side Pin 21 is Cash Out Button

Holiday Party

El Dorado

  • 36 Pin Harness
  • Solder-Side Pin 18 is Note In
  • Part-Side Pin 18 is Coin In
  • Pin Out Chart (Link)
